From rainstorms to sun, high humidity, and blustery winds, an enclosed facility on the East Coast simulates weather anywhere on Earth.
It’s not a typical day at the Delaware headquarters of W.L. Gore & Associates. The media has gathered for a tour of the brand’s new testing facility.
It’s sunny outside. But the blue skies and a gentle breeze hide some straight-up nasty weather found inside Gore’s EM5 facility. Here, gear is tested for the great outdoors. But Gore does this by bringing the harsh elements indoors. There, it can apply scientific methods to evaluate performance.
Because Gore-Tex offers a guarantee on products made with its fabrics, it’s also on the hook for performance issues or sub-par manufacturing. Thus, the brand goes to some serious measures to assure garments meet its rigorous standards.
Gore-Tex: Tested Indoors
It’s late fall when we walk though the halls of the sprawling facility. It houses both manufacturing and product testing, and rooms buzz with activity. This is the home of Gore-Tex, a brand with approximately $3 billion in annual sales.
It opened new portions of its lab last fall. Gore’s Fabrics Division spends tens of millions of dollars on R&D annually, which includes the lab (the brand didn’t disclose the exact price).

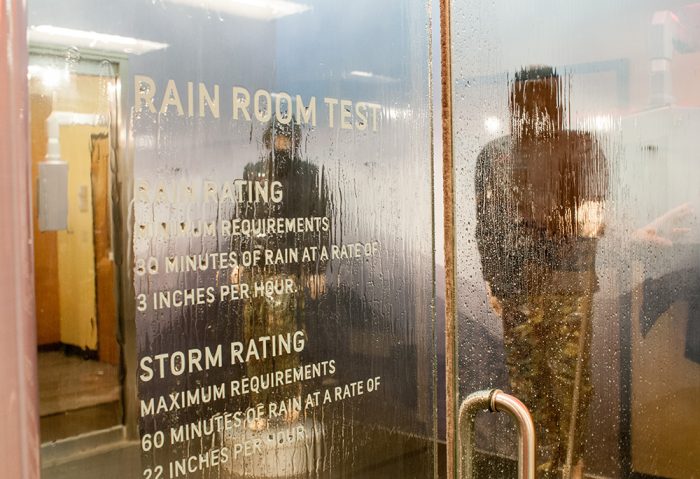

Here, four-story high rain towers dump precipitation on finished jackets and pants for hours on end. Other rooms mimic blowing rains with sideways wind.
The brand can create rainfall rates ranging from a light drizzle in Scotland to a downpour in the Pacific Northwest. Rainfall can reach up to 3 inches per hour, and water and air temps range from 5º to 25º C.
Inside Gore’s Biophysics Lab

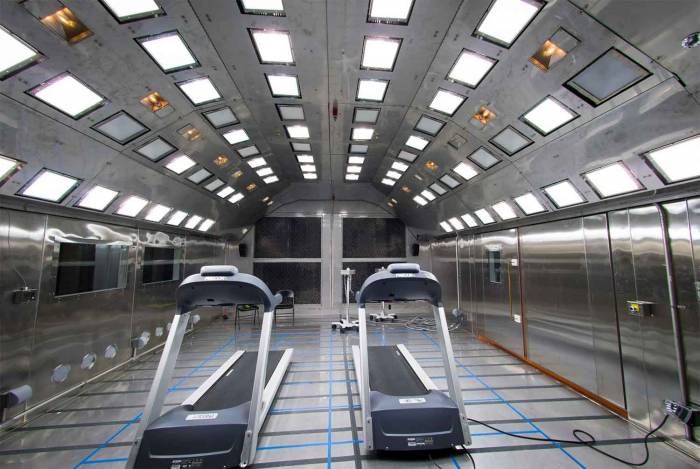

Among the most interesting and advanced rooms is the “Environmental Chamber,” part of the brand’s biophysics lab. It replicates the temperatures and solar radiation from almost any location on Earth.
Temperatures inside the chamber range between -50º and 50º C. Operators set relative humidity from five to 98 percent, with winds from 0 to 10 meters/second.
Inside that room, hired athletes run on treadmills to test everything from running gear to firefighting apparel.
For firefighters and military applications, a new Heat and Flame Protection Lab tests fire-resistance properties. This lab tests for three key elements of burn protection: flame resistance, thermal insulation, and thermal stability.
Engineers use a cone calorimeter to measure the amount of heat released by finished fabrics. Stored thermal energy tests evaluate burn risks for firefighters standing outside ground fires.
One room full of laundry machines even tests fabric durability by washing them over and over. It’s a fascinating place to visit.
And while the final tests take place on high mountains and rugged forest floors far from the developed Delaware base, it’s reassuring to see. These garments really are put to the test.
